Pick the wrong vial neck and your autosampler needle can bend, your cap can leak, and your peak area can drift run after run. I’ve watched labs spend days chasing “mystery” reproducibility problems that turned out to be nothing more than a mismatched neck finish. This guide walks you through every neck type you’ll actually meet, how to read the cryptic numbers stamped on the box, and how to match each one to your instrument.
If you want the short version: an HPLC vial’s “neck” is the opening and closure interface at the top, and it comes in three main families — screw (8-425, 9-425, 10-425, 13-425 and larger), crimp (usually 11 mm), and snap (usually 11 mm). The two-part code on a screw vial, like “9-425,” tells you the opening diameter and the thread style, which is the single most important detail for autosampler compatibility.
Stick with me and by the end you’ll know exactly which neck to order — and which ones to avoid for your specific system.
What a “Neck Type” Actually Means
Before we get into the numbers, let’s define the thing. The neck of a vial is the top portion — the finish — where the closure (cap, crimp, or snap ring) attaches. It controls three things that matter to your data: how the cap seals, how the autosampler needle enters, and how much sample you can recover from the bottom.
For screw-thread vials, the industry uses a two-part code from the Glass Packaging Institute, or GPI. The first number is the diameter across the outside of the threads in millimeters. The second number is the thread style. So an 8-425 neck finish means a vial with an 8 mm thread diameter and a “425” thread style. That’s the whole secret — the number isn’t arbitrary, it’s a physical measurement.
This matters because a 9-425 cap will not reliably seal an 8-425 vial, even though they look close. The Chromatographic Specialties vial selection guide breaks this down clearly: screw threads, crimp seals, and snap seals are all “differentiated by their thread finish as defined by the Glass Packaging Institute,” and each one trades off cost, seal quality, and reusability differently.
Think of the neck type as the handshake between your vial and the rest of your system. If the handshake is wrong, everything downstream suffers.
Screw-Neck Vials: The Workhorse of HPLC
Screw-neck vials are what most labs reach for first. They reseal, they don’t need special tools, and they’re forgiving when you’re in a hurry. The Agilent autosampler vial selection guide puts it simply: for liquid chromatography, where samples are mostly aqueous and sealability isn’t the primary concern, screw and snap tops are the standard choice.
But “screw neck” isn’t one thing. It’s a family of thread sizes, and they are not interchangeable. Here’s each one you’ll actually use.
The 8-425 Thread
The 8-425 is the original small-opening autosampler vial. The opening is narrow — around 7 mm or less — which makes it a good fit for autosamplers with slim needles, but it also means a little less room for error when the needle descends. These are standard 12 × 32 mm, 2 mL vials.
I reach for 8-425 vials when I’m running older or narrow-neck autosamplers that were designed around the smaller opening. They’re still everywhere in GC and HPLC labs, and they cost a bit less than their wider siblings.

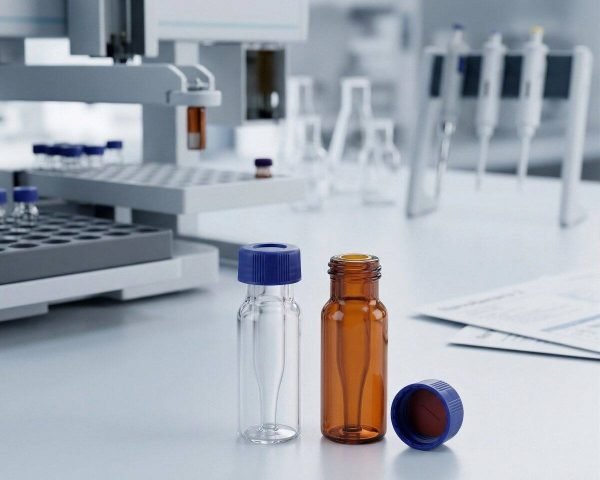

The 9-425 Thread
Here’s the one you’ll see most often. A 9-425 (also called “9 mm short thread”) vial is dimensionally designed to drop into the same trays as an 11 mm crimp vial. That’s the key insight: the 9-425 screw finish is dimensionally equivalent to the 11 mm crimp finish, so you can often swap a 9 mm screw vial into an instrument that was specced for crimp caps.
The Thermo Scientific 9 mm screw thread vials illustrate the modern take on this: they’re built with an “Advanced Vial Closure System” (AVCS) that adds a physical stop point so you can’t over- or under-tighten the cap. That stop point is a big deal because it removes the guesswork that used to cause septa push-through and inconsistent seals.
For everyday HPLC and LC-MS work, the 9-425 is my default recommendation. It’s compatible across the most instruments and it’s easy to handle.
The 10-425 Thread
The 10-425 is less common but worth knowing about, especially if you inherit an older instrument or a specific autosampler. It’s a slightly larger screw thread than the 9-425, and some vendors call it the “big mouth” or wide-opening screw format. The larger opening reduces the risk of a bent needle during sampling, which is exactly why some robotic autosamplers prefer it.
The 13-425 Thread
Move up to 13-425 and you’re usually looking at a larger vial — often 15 × 45 mm with a 4 mL capacity rather than the standard 2 mL. The 13-425 thread pairs with a wider mouth that’s handy for viscous samples or when you simply need more volume. Several older Waters 48-position autosamplers use this format, so if you’re running legacy Waters gear, don’t assume a 9-425 will fit.
The Larger Formats: 15-425, 18-400, and 24-400
Once you climb past 13-425, you’re leaving the world of 2 mL autosampler vials and entering storage and EPA vial territory. Threads like 18-400 and 24-400 show up on 20–60 mL EPA vials and larger storage bottles. They matter for sample collection and archiving, not for the autosampler tray itself, but they’re the same GPI numbering logic — diameter first, thread style second.
Crimp-Neck Vials: The Tightest Seal
When sample evaporation is your enemy, crimp is your friend. A crimp-neck vial gets an aluminum cap that a tool mechanically deforms around the vial’s flange. The result is an airtight, tamper-evident seal that you have to physically decrimp to open.
The Agilent guide is explicit about when this matters: for GC and GC-headspace work, where the sample matrix is volatile and internal pressure builds up, crimp tops are the recommendation because they deliver the ultimate seal and limit sample loss.
The trade-offs are real, though. Crimp vials are single-use — you can’t just pop the cap back on for another injection. You also need a crimper (and a decrimper) on the bench, and a bad crimp can cause its own problems. Over-crimping can lead to septum coring and bent needles, while under-crimping leaves a loose seal that lets volatile sample escape. If you want to do crimping properly, our guide on crimp sealing without leaks walks through the technique step by step.
For headspace specifically, crimp is non-negotiable in most workflows — the pressure inside a heated headspace vial demands the mechanical lock a crimp provides.
Snap-Neck Vials: Speed Without Tools
Snap-neck vials sit between screw and crimp. A polyethylene cap presses down over the neck and snaps into a groove, giving you a friction seal with a single push. No threads, no crimper, no tools.
The appeal is speed. If you’re processing high-throughput samples and the analytes aren’t volatile, snap caps let you cap and decap faster than anything else. You’ll often hear an audible click when the cap seats, which is a nice built-in confirmation that the seal is aligned.
The catch: the seal isn’t as strong as a crimp, and the snap ring can degrade after a couple of open-close cycles. For non-volatile, short-term samples in a busy HPLC lab, snap tops are a legitimate time-saver. For volatile or long-storage samples, skip them.
Wide-Mouth vs Narrow-Mouth Openings
This is a subtle point that trips people up. Two vials can have the same thread style but different opening widths. A “wide-opening” or “big mouth” vial has roughly a 40% wider mouth than the standard version, which gives the autosampler needle a bigger target and lowers the chance of a bent needle.
Why does this matter? Because a bent needle is one of the most annoying (and expensive) failure modes in the lab. If your method uses a robotic arm or a tight needle-descend path, a wide-mouth vial is cheap insurance. The trade-off is that the wider opening changes the insert compatibility, so check which inserts fit before you stock up.
How to Match a Neck Type to Your Autosampler
This is where most mistakes happen, so let’s make it concrete. Different instrument families have different expectations, and the tray geometry plus the needle path dictate what actually works.
The safe default is the 12 × 32 mm, 2 mL vial with a 9 mm screw thread. That single format covers the majority of modern LC, UHPLC, and many GC autosamplers from the major vendors. The Sigma-Aldrich certified 9 mm screw thread vials list their autosampler compatibility right on the product page — Agilent, Shimadzu, Waters, PerkinElmer, Hitachi, and the CTC PAL family all accept the 9 mm thread in most configurations. That cross-vendor compatibility is exactly why the 9 mm screw neck became the de facto standard.
For Waters systems in particular, the screw neck does more than just hold the cap. The Waters Total Recovery vial uses a universal screw cap that squeezes the septum between the glass rim and the cap as you tighten it, which both seals the vial and holds the septum in place during needle piercing. That’s a concrete example of how the neck design directly affects injection performance.
The rules of thumb I’d give you: – LC and LC-MS → 9 mm screw (or snap) is almost always right. – GC and headspace → 11 mm crimp for the seal integrity. – Narrow-neck or legacy systems → check for 8-425 compatibility. – Larger-volume or legacy Waters 48-position → look at 13-425. – High-throughput, non-volatile → snap tops save real time.
When in doubt, the autosampler manufacturer’s manual is the final word. The tray was designed around a specific neck, and no amount of wishful thinking changes the physics.
Neck Type and Sample Integrity
The neck type doesn’t just affect your needle — it affects your data. Here’s how.
Evaporation. A loose-fitting or mismatched closure lets solvent evaporate, which concentrates your sample and inflates your peak areas. Crimp necks minimize this; snap necks tolerate it worst; screw necks sit in the middle and depend on your tightening torque.
Dead volume. The neck and closure design affects how much sample you can actually draw. A well-designed screw neck lets the needle reach deep and consistently, while a bad match can leave more residual volume behind. This is part of why understanding vial size and geometry matters as much as the neck itself.
Coring and push-through. Septum coring — where a needle punches out a little disc of septum into your sample — is closely tied to the cap and neck alignment. A stop-point neck (like Thermo’s AVCS) reduces push-through, and the right crimp pressure reduces coring.
Contamination. Every time you re-open a vial, you introduce a chance for contamination. A screw neck that reseals cleanly is easier to live with than a crimp you have to fight open with a decrimper.
How Neck Types Interact With Septa and Caps
A neck finish is only half the system — the cap and septum have to match it precisely, or you’ve bought yourself a slow leak. This is the pairing that trips people up, so let’s make it concrete.
Every screw thread needs a cap cut to the same GPI finish. A 9-425 cap on a 9-425 vial threads cleanly and compresses the septum against the glass rim. Put that same cap on a 10-425 vial, and you either cross-thread it or leave a gap that lets solvent evaporate. The thread style — that “425” in the code — is what makes the fit exact, not just the diameter.
The septum is the second half of the pairing. Screw-neck vials take caps with either an open hole (so the autosampler needle pierces through) or a solid top (for pure storage). For re-injection work, a PTFE/silicone septum reseals after the needle withdraws; a PTFE-only septum does not, which is why single-shot injections often use plain PTFE. Getting this wrong shows up as evaporative loss between injections.
Crimp and snap necks have their own pairing rules. A crimp seal needs a septum sized to the 11 mm cap and a crimper set to the right compression — too tight and you core the septum, too loose and it leaks. Snap caps use a softer, pre-formed shell that deforms over the groove, which is fast but only forgiving within its designed tolerance.
The practical takeaway is simple: treat the vial, cap, and septum as a matched system, not three independent purchases. The neck finish is the interface that decides whether those three pieces actually work together, and a mismatch in any one of them undermines the other two.
Neck Types Across the Major Brands
The neck type is standardized across the industry, but each major vendor has its own naming and its own favorite format. Knowing the translation makes any catalog easier to read.
Agilent leans on the 9 mm screw thread for LC and the 11 mm crimp for GC, and its part numbers encode the neck within the product line — its deactivated (silanized) screw-top vials use the standard 9 mm screw finish, while its crimp vials use 11 mm. The Agilent vial selection guide also recommends deactivated glass for MS work regardless of neck type, because surface chemistry matters as much as the finish itself.
Waters standardizes on the 12 × 32 mm screw neck and built its Total Recovery vial around the Alliance needle depth. The Waters 186000848 amber vial is the canonical screw-neck part, and the screw cap’s squeeze on the septum is a core part of how Waters achieves a reliable seal.
Thermo Fisher pushes its Advanced Vial Closure System on 9 mm screw vials, where a molded stop point removes the guesswork of over- and under-tightening. The Thermo 9 mm screw thread vial is the reference product, and the same AVCS logic runs across the Premiere, National, and Chromacol brands.
Shimadzu and the CTC PAL family accept the standard 9 mm screw thread in most configurations, which is why the format works as a cross-vendor default. The Sigma-Aldrich certified 9 mm vials list Shimadzu, Waters, Agilent, PerkinElmer, Hitachi, and CTC PAL compatibility all on one page — a handy cross-reference when you’re juggling a mixed instrument fleet.
The lesson here: the neck type is universal, but always confirm against the vendor’s own compatibility list, because tray geometry and needle depth vary even when the thread is nominally “standard.”
Neck Type and Inserts: What Fits What
If you run limited-volume samples, the neck type quietly limits your insert options. Inserts — the little tapered tubes that sit inside a vial to cut dead volume — are sized to the vial’s opening, and a wider neck means a wider insert.
The relationship is straightforward: the larger the opening, the larger the insert diameter you can drop in. A narrow 8-425 opening takes a slim insert, while a wide-mouth 9 mm or 13-425 vial accepts a bigger, higher-capacity insert. That matters because a bigger insert holds more sample and often recovers more of it.
The neck type also determines whether you need an insert at all. High-recovery vials bake the tapered geometry into the glass itself — like the Waters Total Recovery vial — so you skip the insert entirely. That only works because the vial’s neck and internal profile were designed as one unit.
For most labs, the practical rule is to match the insert to the vial opening, and if you’re buying inserts run after run, consider a high-recovery vial that eliminates the insert and its recurring cost. The neck type is the hidden constraint in that whole decision.
What Each Neck Type Costs
Cost is the last thing most people weigh, but the differences are worth knowing before you standardize on a format.
Screw-thread vials and their caps are generally the more expensive option per unit. The Chromatographic Specialties guide notes this directly: “Screw thread vials and caps are more expensive than crimp seals.” The convenience and reusability come at a slight premium.
Crimp seals, by contrast, are relatively inexpensive — the lacquered aluminum caps are cheap — but you have to factor in the crimper and decrimper tools, plus the fact that every crimp is single-use. The per-unit savings can get eaten by the tooling and the lack of reusability.
Snap caps sit near the bottom on unit price and need no tools, which is why high-throughput labs love them — but the weaker seal means they’re not a free lunch for volatile or long-storage samples.
The honest framing isn’t “which is cheapest” but “which costs the least over your actual workflow.” If you re-inject or store samples, screw’s reusability pays back its premium fast. If you run one-shot volatile samples through GC, crimp’s seal integrity is worth every cent, tools included. If you blast through thousands of non-volatile samples a week, snap’s speed and price are hard to beat.
Choosing the Right Neck Type: A Decision Framework
Let’s compress all of this into something you can act on in 30 seconds.
Start with your instrument. Check the manual or the tray for the expected format — most modern LC systems want a 12 × 32 mm, 9 mm screw vial. That single decision eliminates 80% of the guessing.
Then ask three questions: 1. Are my analytes volatile? If yes, lean crimp (GC/headspace). If no, screw or snap is fine. 2. Do I need to re-inject or store the sample? If yes, screw (reseals cleanly). If it’s one-shot, crimp or snap is fine. 3. How fast do I need to move? High throughput and non-volatile → snap. Otherwise → screw.
Finally, don’t cheap out on the closure that pairs with your neck. The neck and the cap are a system, and a mismatched cap is the fastest way to undo all the care you put into choosing the right vial. Our guide on choosing the right vial cap goes deeper on that pairing, and if you’re still early in the selection process, choosing the right HPLC vial overall covers the bigger picture.
Common Neck Type Mistakes to Avoid
I’ve seen the same handful of errors repeat across labs, and they’re all cheap to fix once you know to look for them.
Mixing up 8-425 and 9-425. They sit next to each other on the shelf and look nearly identical, but the caps are not interchangeable. A lab that accidentally stocks 8-425 caps for 9-425 vials ends up with cross-threaded caps and slow leaks that take days to diagnose.
Assuming “9 mm” is always the same thread. A 9 mm crimp, a 9 mm screw, and a 9 mm snap are three different neck finishes. The diameter is only part of the story; the closure style is the other half, and it changes everything about how the vial seals.
Ignoring the crimper’s adjustment. A crimper that’s set too loose or too tight produces either a leaking seal or a cored septum. Crimp pressure isn’t “set and forget” — it drifts, and it’s worth checking when your injection precision starts to wander.
Buying the vial without checking the cap. The vial and cap are a matched system. Ordering the cheapest vial and the cheapest cap independently is how you end up with a “compatible” pair that doesn’t actually seal, because neither was designed for the other’s neck finish.
Skipping the insert-size check. A wider neck changes which inserts fit, and a mismatched insert either rattles around or sits proud of the vial rim, throwing off needle depth and recovery. Confirm insert compatibility against the opening every time you change neck formats.
None of these are exotic — they’re the everyday friction of running a busy lab. But each one quietly costs you in rework, downtime, or lost sample, and all of them disappear the moment you treat the neck type as a first-class specification rather than an afterthought.
Conclusion
The neck type is the quiet detail that decides whether your HPLC run is clean or chaotic. The two-part GPI code — diameter first, thread style second — is all you need to read the label, and the three families — screw, crimp, and snap — each earn their place by trading seal strength, reusability, and speed. For most LC and LC-MS work, a 9 mm screw neck on a 12 × 32 mm vial is the safe, universal default. For volatile GC and headspace samples, step up to an 11 mm crimp and its airtight mechanical lock. And for high-throughput, non-volatile work, a snap top can genuinely save you hours every week. Match the neck to your instrument first, then to your sample’s volatility and your re-injection needs, and you’ll sidestep bent needles, leaky caps, and drifting peak areas. If you want to keep going, read how to choose the right HPLC vial and then perfect your crimping to lock in the technique.
Frequently Asked Questions
What does 9-425 mean on a vial?
It’s the neck finish code. The “9” is the thread diameter in millimeters and “425” is the GPI thread style, so a 9-425 vial takes a 9 mm screw cap with a specific thread pitch. This two-part code is what tells you whether a cap will actually seal the vial.
Are 9mm screw and 11mm crimp vials interchangeable?
In most autosamplers, yes. A 9 mm short-thread screw vial is dimensionally designed to fit the same trays as an 11 mm crimp vial, which is why the 9-425 screw neck became the universal LC default. Always confirm against your instrument manual, but the interchange is the rule rather than the exception.
Which neck type is best for GC and headspace?
Crimp. GC and headspace samples are volatile and build internal pressure, so the airtight mechanical lock of an aluminum crimp cap is what limits sample loss. Screw and snap tops don’t seal tightly enough for those conditions.
Can I reuse a crimp-top vial?
Not cleanly. A crimp seal is single-use — you have to decrimp to open it, and the deformed aluminum cap can’t be re-crimped. For re-injection or storage, use a screw neck, which reseals cleanly.
What’s the difference between a wide-mouth and a narrow-mouth vial?
The opening width. A wide-mouth vial has roughly a 40% wider opening, which gives the autosampler needle a bigger target and reduces the risk of bent needles. The thread size can be the same, but insert compatibility changes with the opening.
