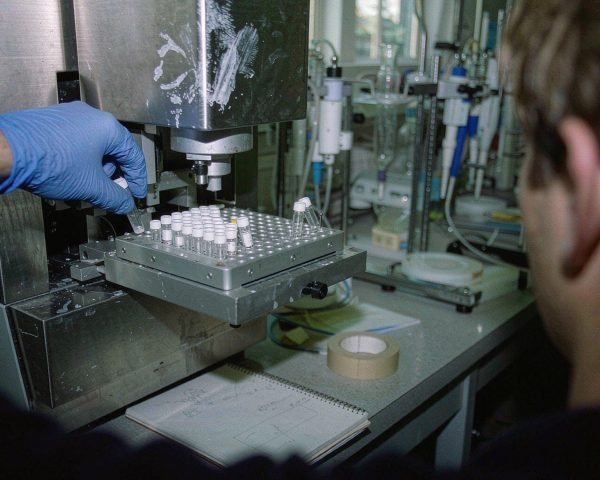

# 10 Consumables That Cause Autosampler Errors
Most “autosampler errors” I get called in on have nothing to do with the autosampler. The instrument is fine. The consumable feeding it is not. A vial half a millimeter out of spec, a cap crimped too hard, a septum shedding crumbs into the needle seat. Small parts, expensive downtime.
Quick answer: The most common consumable causes of autosampler errors are off-spec vial dimensions, over- or under-height caps, badly crimped closures, septa that core or grip the needle, peeling labels, static-charged plastic vials, unseated inserts, evaporated samples, and undersized waste vials. Each produces a distinct, diagnosable symptom.
Here are the ten I see most, what each one looks like at 6 a.m. when the sequence has stopped, and what to buy or do differently next time.
1. Vials That Are Off-Spec by Half a Millimeter
The error usually arrives as a gripper fault. “Vial not found.” “Tray position error.” Sometimes the tray jams outright at position 34 and the whole queue stops. You open the lid, slide the rack out, and the vial is sitting crooked in its well, or two vials are fused together in the grip of a cap that caught the neighbor.
Agilent is blunt about this in its 7890 troubleshooting documentation: incompatible sample vials cause tray and turret errors. Their spec for a standard crimp vial is a neck height of about 28.4 mm from vial bottom to top of neck and a neck diameter of 8.2 ± 0.2 mm. Cheap vials drift outside that window, and the gripper, which was calibrated for one geometry, now meets another.
The worst part is that the failures look intermittent. A rack loads fine on Monday, jams on Wednesday, and the only difference is a new vial lot that arrived with the weekly delivery. I keep a note of the lot number taped inside every tray now, because “which vials were these” is the first question any service engineer asks.
The fix is boring and it works. Ask your supplier for a dimensional certificate. Caliper ten random vials from every new lot before you commit a tray to it. If you are not sure which dimensions matter for your instrument, our guide to autosampler vial dimensions walks through the numbers that actually get checked.
2. Caps That Sit Too Tall
A cap adds height to the vial, and the tray clearance was designed around a nominal assembled height. Exceed it and the cap hits the underside of the needle seat or the gripper cannot close. Under-height is less dramatic but just as costly: the cap sits low, the needle bottoms out before it reaches the liquid, and you inject headspace instead of sample.
The symptom that gives this away is a run where every injection from one rack position looks diluted, while the next rack is fine. That is a mechanical reach problem, not a chemistry problem. Someone swapped in a taller cap style halfway through loading. Headspace vials are a special trap here, because their long necks make total height look normal while the closure sits in a different place than the needle expects.
The buying fix is to treat vial and cap as one part. Verify the assembled height against your autosampler manual before you order a thousand units of a “compatible” cap, and keep one known-good assembled vial on the bench as a physical reference. When a suspect cap style arrives, stack it next to the reference. Half a millimeter is visible to the eye if you know to look.
3. Caps That Were Crimped Wrong
Two failure modes, both loud.
Over-crimping flares the aluminum wall outward and squeezes the septum into a dense plug. The flared edge binds in the tray well. The crushed septum resists the needle, and a bent needle follows. Agilent’s own needle-bend checklist starts with “check that the GC septum nut is not too tight,” which tells you how often compression is the culprit. I once watched a 96-sample LC-MS sequence die at 2 a.m. at vial 41 because a colleague had crimped a tray by feel after the crimper jaw wore out. Fourteen bent needles’ worth of frustration, one worn jaw.
Under-crimping is quieter. The cap rotates on the neck, the seal weeps solvent into the tray, and peak areas drift down the sequence as samples quietly concentrate.
Put a crimp gauge next to the crimper. Target roughly 11.0 mm on an 11 mm cap and check one vial in fifty. If your jaw is worn, replace it, it costs less than one aborted run.
4. Septa That Core
Every needle puncture shears tiny fragments off the septum. Restek’s coring work shows the fragments come loose when the septum has been punctured too many times, the needle tip is damaged, or the point style is wrong for the material. Those crumbs fall into the vial, lodge in the needle seat, and slowly strangle the sample path.
The symptoms stack up. Ghost peaks nobody can identify. A needle that draws clean for 40 injections and then stops drawing at all. Carryover that shows up two vials after your highest standard. In GC, cored material reaching the inlet liner bleeds siloxanes onto the column and drags the baseline with it.
Respect the puncture count, typically 3 to 5 for a standard silicone/PTFE septum, and buy PTFE-faced or pre-slit septa for multi-puncture work. Restek has also shown that needle tip design matters more than most people expect: a sharp conical tip with a side port cuts cleanly where a dull bevel tears, which is why their SPME testing found arrow-style tips leaving septa intact after 150 injections. We cover the full mechanism in our post on septum coring and how to stop it.
5. Septa That Grip the Needle
This one produces the most alarming error of the ten: the autosampler lifts the vial out of the tray along with the needle. The arm stalls mid-travel and throws a transport fault. On an Agilent forum thread about exactly this symptom, the confirmed culprit was the septa, and the test was simple: run an injection with the septa removed and see whether the vials still stick.
The mechanics are straightforward. A non-slit septum forms a vacuum-tight seal around the needle during a large draw, so the needle cannot pull free without pulling the vial with it. Cheap septa with a tacky surface make it worse. Agilent’s own troubleshooting article for plunger faults tells technicians to check for a defective vial septum cap before anything else, which tells you where this ranks on their list of suspects.
Pre-slit septa solve most of it because they let air equalize behind the needle. If you run volatile samples and cannot risk the slit as a leak path, reduce draw speed instead, and match the septum thickness to the needle gauge so the fit is snug rather than strangled. One more habit worth stealing: when a vial lifts with the needle, do not just reseat it and rerun. Check every vial from the same cap bag, because the whole lot will behave the same way.
6. Labels That Peel
Barcoded sequences fail quietly at first. One misread, the software logs a vial skip or a sample mismatch, and nobody notices until the QC check at the end of the run disagrees with the sequence map.
Peeling labels are also a mechanical hazard. Agilent’s vial guidance tells users to check that labels are the correct size and do not interfere with the gripper, and recommends a specific label position and maximum thickness for that reason. A curled edge lifts the vial fractionally out of the well or blocks the barcode window, and you get errors that look like instrument faults.
Buy labels rated for your solvents and your storage temperature, sized for the vial body, and applied to clean glass. If a vial needs relabeling, remove the old label completely rather than layering, because a double-thick patch is exactly the kind of raised surface a gripper catches on. Shimadzu’s error code tables read like a catalog of what happens when sensors cannot see what the sequence expected, and a half-detached label is a common trigger.
One practical detail: label vials before they go into the freezer, not after. Condensation on a cold vial is the fastest way to make an adhesive give up, and you will not see the failure until the vial warms up in the tray and the corner starts to curl.
7. Static-Charged Plastic Vials
Polypropylene vials are insulators. In a dry lab, pulling them from a plastic rack charges them, and they cling to the rack, to each other, and to dust. In the tray, a charged vial can sit slightly off-center or tilt against the well wall, and a gripper calibrated for a vertical cylinder meets a leaning one.
The symptom is intermittent, which is what makes it maddening. Pickup works 19 times, fails on the 20th, and the error log looks random. It gets worse in winter when the heating drops the humidity. It also gets worse after vials have been wiped with a dry tissue, which is the standard reflex for a dusty vial and exactly the wrong move, because friction is what builds the charge in the first place.
Control the environment rather than the vial. Work above roughly 40% relative humidity if you can, use metal racks instead of plastic, and pass the tray past an ionizer bar before a long run. We go deeper on this in our post on static charge on plastic vials.
8. Missing or Unseated Inserts
Two errors, one root cause. If the insert is missing, a low-volume sample spreads across the vial bottom and the needle cannot reach it, so the syringe draws air or nothing. If the insert is present but not seated flush, the needle path changes by a millimeter or two, enough to strike the insert rim or land beside the liquid pool.
The fingerprint on the chromatogram is an injection that comes back short or empty, followed by an air bubble traveling through the flow path and a pressure wobble on the next few injections. When Thermo Fisher specs its microvials and inserts, the listed geometry is not marketing detail, it is the dimension the needle must navigate.
Match the insert volume to your real residual volume, press inserts fully home with a clean tool, and if you routinely work below 200 µL, consider pre-assembled microvials so this step cannot be skipped on a busy afternoon. If an insert rattles when you shake the vial gently, it is not seated. That five-second check has saved more sequences than any diagnostic software I have used.
9. Samples That Evaporate Mid-Run
An 80-sample sequence takes about 14 hours in the tray. If the closure loses solvent, concentration climbs silently until a needle dips into headspace and injects air. The detector sees a vacuum of a peak, the integrator flags a blank, and your calibration gets interesting.
Waters lists air bubbles, over-filled vials, and over-tightened caps among the things that affect injection accuracy, which is the same story told from the instrument side. A closure that has failed is a closure that has failed, whether it let solvent out or let air in.
The gravimetric check catches it: weigh ten filled, capped vials, run them in the tray for 24 hours, and weigh again. More than 1% mass loss means the seal is not good enough for overnight work. For volatiles, crimp caps with a PTFE-faced septum beat screw caps every time, and a cooled tray halves the problem for free.
Under-filling is the twin of evaporation, by the way. If the method needs 10 µL and the vial holds less than about 300 µL after a few injections from the same vial, the needle starts kissing the bottom or the meniscus. Standard residual volume for a 2 mL vial is only 100 to 170 µL depending on the base shape, so check the spec before you program repeated draws from one vial.
10. A Waste Vial Nobody Sized
The least glamorous part on this list. Autosamplers drain needle wash and rinse solvent into a waste container, and nobody calculates whether that container survives the sequence. Around hour 12 of a long run, it is full. Wash solvent has nowhere to go, liquid backs up into the needle wash station, and either a spill sensor stops the run or solvent ends up in the tray, which is worse. Cleaning solvent out of a tray well at 7 a.m., with a rack of water-sensitive samples swimming in it, is not a morning anyone needs.
The symptom is a sequence that fails in the last third, consistently, on the wet days when you ran extra needle washes. If the waste path is shared, backpressure from a full container can show up as odd draw behavior well before anything overflows.
Size the waste vial for your worst-case sequence, not your average one, and empty it at the start of every run as a habit. For a part that costs almost nothing, an autosampler waste vial gets ignored more than any other consumable on the bench.
Conclusion
None of these parts fails in a way that points at itself. A gripper error looks like a gripper problem. A pressure spike looks like a pump problem. That is why consumables get blamed last, usually after someone has paid for a service visit to be told the instrument is fine.
My habit now is to change the question: when an autosampler faults, I ask what changed in the consumables before I ask what broke in the machine. New vial lot? New cap supplier? A different analyst crimping? Nine times out of ten, one of those is the answer, and the fix costs cents instead of a service contract. Build the same habit into your bench routine: caliper incoming vials, gauge your crimps, weigh an evaporation test tray, and size your waste before the run rather than during it.
If you want to go deeper on the two failures that do the most damage overnight, read why vials break in the autosampler and when to replace an autosampler syringe. Both cover the mechanical chain your consumables have to survive.
Frequently Asked Questions
What consumable causes the most autosampler errors?
Off-spec vial dimensions. The tray, gripper, and needle are calibrated to a vial geometry with tolerances measured in tenths of a millimeter, so a cheap vial that is slightly short or wide produces jams, dropped vials, and needle strikes across the whole run.
Why does my autosampler keep bending needles?
Usually compression at the injection point. An over-crimped cap squeezes the septum hard, an over-tightened septum nut does the same in GC, and the needle meets material that does not yield. Check crimp height and nut torque before blaming the syringe.
How many times can I pierce a vial septum?
A standard silicone/PTFE septum handles about 3 to 5 punctures before it starts coring. Pre-slit and premium bonded septa stretch that considerably, but for volatile samples the trade-off is a small leak path, so match the septum to the method.
Can static on plastic vials really stop an autosampler?
Indirectly, yes. Charge makes vials cling to racks and tilt in tray wells, so the gripper occasionally misses or misgrips. The failure is intermittent and worse in dry, heated labs, which is why it often looks like a random instrument fault.
How do I know if my samples are evaporating in the tray?
Weigh filled, capped vials before and after a 24-hour tray run. More than 1% mass loss means the closure is failing. The chromatographic clue is response drifting upward through a sequence, followed by injections that draw air.
