Here’s a scene I see in labs all the time: a researcher runs out of sample with a 100 µL aliquot sitting unreachable at the bottom of a standard flat-bottom vial. The autosampler needle just can’t grab it. The difference between losing that aliquot and injecting it comes down to one thing — the shape of the vial bottom.

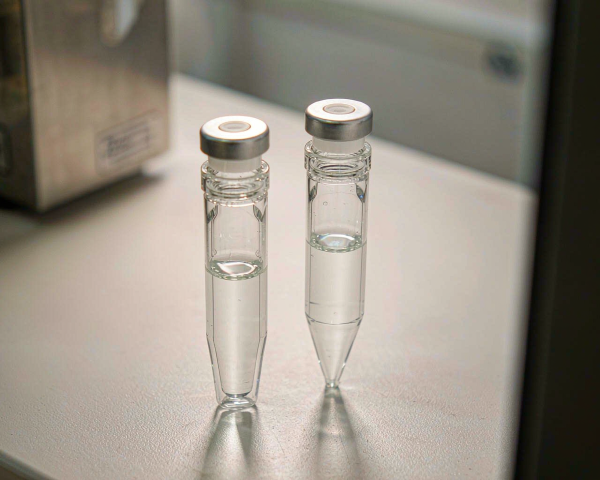

The short answer: flat-bottom vials are the economical default for normal sample volumes, while conical-bottom (high-recovery) vials taper toward a point so the needle can reach nearly every drop. If you work with small or precious samples, conical geometry saves you; if you have plenty of volume, flat bottom is perfectly fine.
Let me walk through how bottom geometry works, what each type costs you in residual volume, and how to choose between them.
Why Bottom Geometry Matters: Residual Volume
Every autosampler needle stops a fixed distance from the bottom of the vial. Whatever liquid sits below that point is simply unreachable — chromatographers call this the residual volume. It’s the sample you can’t inject, and it’s pure waste when your sample is precious.
MicroSolv’s knowledge base defines it precisely: residual volume is the liquid left behind after the syringe needle completes its programmed draw, and flat-bottom vials typically retain more of it than tapered designs. Tapered or conical bottoms reduce residual volume because the needle can access more of the sample as it approaches the point.
That single fact drives the whole flat-vs-conical decision.
Flat-Bottom Vials: The Workhorse
A flat-bottom vial is exactly what it sounds like — a straight-sided tube with a flat base. It’s the standard 2 mL autosampler vial that fills lab drawers by the thousands, and for good reason.
- Lowest cost per vial of any geometry
- Maximum usable volume for the vial size
- Easy to stand on the bench, no special racks needed
- Totally fine when you have more sample than the needle needs
The catch is at the bottom. On a flat-bottom vial the needle stops with a thin layer of liquid below it — a few microliters on a good day, more if the needle sits higher. For most routine injections that’s irrelevant. For a 150 µL sample that needs three injections, it starts to bite.
Conical-Bottom Vials: Built for Recovery
Conical-bottom vials — often marketed as high-recovery or total-recovery vials — narrow toward the bottom into a cone or V shape. The needle follows the taper and drains almost everything.
The numbers make the difference concrete. Thermo Scientific’s SureSTART high-recovery microvials, for example, use an internal conical reservoir that collects the sample into a 30 µL volume at the bottom and leaves roughly 4 µL of residual volume. Waters’ technical library reports similar numbers for its total-recovery vials — as low as 4 to 10 µL depending on the autosampler — while its flat-bottom 2 mL vials leave as much as 750 µL unreachable in some configurations. That’s the difference between injecting your sample and pouring it down the drain.
MicroSolv’s own max-recovery vials take the same approach: a conical, center-draining bottom with smooth, ledge-free walls and residual volume down to around 8 µL. The geometry is consistent, lot to lot, which is exactly what you want when every microliter counts.
What do you give up? Cost per vial is higher than flat bottom, and the tapered interior holds slightly less usable volume than the same outer dimensions would in a flat design. Also, the narrow point can be more prone to trapping bubbles during filling — a trade-off I covered in the bubble article.
The Middle Ground: Inserts and V-Bottoms
You don’t have to choose between flat and conical at the vial level. Inserts give you the best of both: a standard flat-bottom vial shell with a small conical or flat insert inside that concentrates the sample.
Chrom Tech’s insert guide explains the options well — flat-bottom inserts are the most economical with the largest capacity, while conical or pulled-point inserts taper to a narrow point so the needle can reach nearly every drop. If you only occasionally work with small volumes, a box of inserts is a cheaper path than switching your whole vial stock to high-recovery geometry. Our guide on vial inserts covers the full comparison if you want the details.
How to Choose: A Simple Framework
Match the geometry to your sample volume, not to habit:
- ≥ 300 µL available, single or few injections → standard flat-bottom vial. No reason to pay for recovery geometry.
- 50–300 µL, multiple injections or re-injections → conical high-recovery vial, or a flat-bottom vial with a conical insert.
- < 50 µL → conical microvial, a vial with a fixed conical insert, or an insert with a mandrel point. Every microliter of recovery matters here.
- Trace or expensive samples, LC-MS work → conical geometry plus deactivated glass if adsorption is a concern.
One more thing to check: your autosampler’s needle depth. Not every instrument reaches equally far, and some needle designs work better with center-draining geometry than others. If you’re unsure what your instrument expects, our guide to choosing the right HPLC vial and our vial size guide walk through matching vial dimensions and geometry to your autosampler.
Conclusion
The difference between conical and flat-bottom vials is residual volume — the sample your needle simply can’t reach. Flat-bottom vials win on cost and simplicity when volume is plentiful; conical, high-recovery vials win when every drop matters, cutting residual volume from hundreds of microliters down to single digits in some configurations. Inserts give you a flexible middle path without replacing your whole vial stock. Match the bottom geometry to your sample volume, consider needle depth on your instrument, and you’ll stop losing samples at the bottom of the vial. If you’re still weighing vial options, our complete guide to HPLC vial neck types covers the matching closure systems you’ll need alongside whichever bottom you choose.
Frequently Asked Questions
What is a high-recovery vial?
A high-recovery (or total-recovery) vial has a conical or V-shaped bottom that lets the autosampler needle reach nearly all of the sample, minimizing residual volume. They’re used when sample volume is limited or when you need to reinject the same sample.
How much sample is left in a flat-bottom vial after injection?
It depends on the autosampler and needle depth, but it can be substantial — Waters’ technical library cites residual volumes as high as 750 µL for some flat-bottom vial and instrument combinations, versus 4–10 µL for total-recovery designs.
Are conical vials compatible with all autosamplers?
Mostly yes, but needle depth and geometry vary by instrument. Some designs use bottom-entry needles that work best with center-draining conical vials. Always verify compatibility with your autosampler model before switching.
When should I use a vial insert instead of a conical vial?
Use inserts when small-volume work is occasional rather than routine — they let you keep standard flat-bottom vials and add a conical or flat insert only when needed. For continuous low-volume work, dedicated conical vials are usually more convenient.
Do conical vials cost more than flat-bottom vials?
Yes, typically. The precision-molded taper costs more to manufacture. If your sample volumes are generous, flat-bottom vials remain the economical default; the premium pays for itself only when recovery matters.
